W463 Spare Wheel Carrier

W463 Spare wheel Carrier One of the most distinctive parts of the Mercedes-Benz G-Class (G-Wagon) is the W463 Spare Wheel Carrier. It is located outside on the swing-out rear door and holds a spare full-size wheel of the car. In the case of W463 body type, which was manufactured from around 1990 to 2018, as well as its facelifted version W463A, which is currently made since 2019, the spare wheel carrier is not just a piece of decoration but an integral part of the vehicle.

History and Development of the W463 Spare Tire Carrier
The W463 Spare wheel Carrier stems from the military design elements incorporated into the G-Class. Made to be exceptionally rugged, the external tire carrier makes sure the interior is unoccupied at all times while letting drivers explore rough terrain knowing there is no need to repair tires.

The earliest W463 variants came equipped with a simple and sturdy steel carrier and mounting mechanism. Throughout the years, Mercedes developed this system using improved gas struts to cope with the load exerted by the tire and wheel assembly onto the rear door.

The 2019+ W463A series came with a new design for the bodywork and hinges, meaning different carriers cannot be directly interchanged with those of older models.

Why the W463 Spare Wheel Carrier Matters

W463 Spare wheel Carrier These days, with so many cars using run-flat tires or skinny little spares, the W463 Spare Wheel Carrier feels almost old-school—and in a good way. It gives you a full-size spare that matches the rest of your tires, so when you hit a nail or run into trouble off-road, you can swap it in and keep rolling like nothing happened. That’s a huge deal if you’re out exploring, far from any help. Plus, mounting the spare on the outside helps balance the weight and even shields the rear bumper from bumps and scrapes.

W463 Spare wheel Carrier A lot of owners swap out their original carrier or upgrade it. Why? Off-road adventures can rough it up—think rocks, tree branches, and rust. Some people need to fit bigger wheels—35-inch, 37-inch, or even larger—and the stock carrier just won’t cut it. Others want to change up the look, or they go for a flip or reverse mount to really show off those fancy wheels. For a lot of W463 fans, it’s not just practical—it’s personal.

Stock W463 Spare Wheel Carrier Specifications

W463 Spare wheel carrier factory style on the W463 uses tough brackets that bolt straight onto reinforced rear door hinges. You also get spacers, special lug bolts, and a tire cover—either in plastic or fabric.

Gas struts help hold up the extra weight when you swing the rear door open. Mercedes designed this carrier to handle some serious weight while keeping things smooth and the door lined up right. But if you’ve lifted your G-Wagen or swapped wheels and tires, the stock carrier usually doesn’t have enough clearance or muscle. That’s when people start looking for upgrades. Types of W463 Spare Wheel Carrier Upgrades There are a ton of aftermarket options out there

W463 Spare wheel carrier Heavy-Duty Fixed Carriers Eurowise is a big name here. They make burly reinforced steel and billet aluminum mounts built specifically for bigger tires and rough trails. These carriers are much stronger than stock and sometimes let you adjust for different wheel offsets. Flip or Reverse Spare Tire Mounts Brands like 911 Motorsports, HK Offroad, and Jaywagon offer mounts that let you show off the face of your spare—great if you’ve invested in custom wheels. Most kits come packed with all the hardware you need: short and long spacers, OEM-style lug bolts, and detailed instructions.

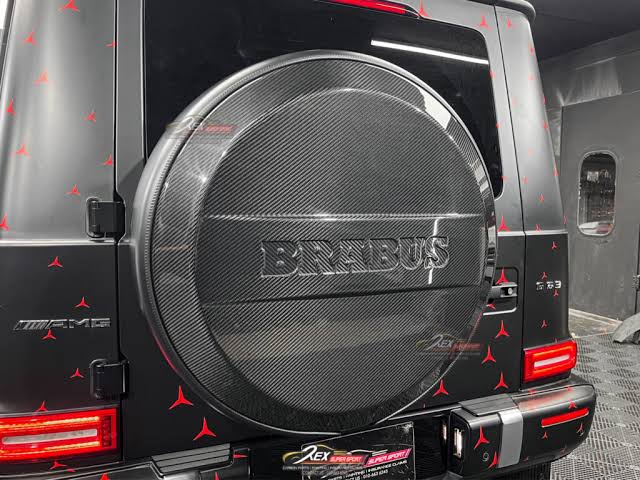

Premium Luxury Carriers This is where things get pretty fancy. LeTech makes high-end holders with carbon fiber covers that look right at home on a 4×4². Brabus and other luxury tuners sell carriers with custom lighting or unique finishes if you want something exclusive. Adjustable Carriers If you plan to keep changing things up, Eurowise and similar brands offer mounts you can dial in for different tire sizes and backspacing. Perfect for anyone who’s always tweaking their setup.

W463 vs W463A Spare Wheel Carrier Compatibility

W463 Spare wheel carrier Before you start any work on a spare wheel carrier for a G–Wagen, you’ve got to check which version you have. The chassis changed in 2019, splitting the older W463 and the newer W463A apart. Both generations have different rear doors and hinges.

Their carriers don’t just swap over—if you try, you’ll end up needing to make modifications. The best bet is to double-check compatibility with your VIN or talk to someone who specializes in these trucks. These days, a lot of aftermarket companies actually offer dedicated carriers for both models.

Tools and Preparation for Installation Here’s what you’ll need for a typical W463 spare wheel carrier job: – Socket set with at least 10mm, 13mm sockets, and Torx bits – Torque wrench – Jack stands and something solid to set the tire on – Thread locker like Loctite – A drill, especially if you’re going with a heavy-duty or custom carrier – Rust inhibitor and some general cleaning stuff

If your carrier has electric sensors or wiring, grab a multimeter and basic wiring tools too. Step-by-Step: Removing the Factory Carrier

1. Park the truck on level ground, set your parking brake.

2. Take off the spare tire cover.

3. Loosen and remove the lug nuts on the spare tire.

4. Lower the tire carefully and put it somewhere safe.

5. Support the carrier so it doesn’t twist or fall, then remove the main mounting bolts from the door hinges.

6. Unplug any sensor or wiring connections, if your truck has them.

7. Clean off those hinge points and spray some rust inhibitor so you don’t run into corrosion down the line. From start to finish, you’re looking at maybe half an hour, maybe up to an hour if you’re taking it slow. Installing a New W463 Spare Wheel Carrier

How to Install a New W463 Spare Wheel Carrier

W463 spare wheel carrier If you’re using flip mounts like the 911 Motorsports setup, start by lining up the new bracket with the hinge points. Toss in the appropriate spacers—short ones for a standard fit, long ones if you need more room. Secure everything with the hardware and don’t forget a dab of thread locker. Once that’s done, mount the spare with the wheel face pointing outward and make sure you torque those lug nuts the right way.

Going for a heavy–duty G wagon or LeTech setup? Sometimes you’ll need to drill new holes through the reinforced hinge spots to keep things solid. It’s smart to get a pro to check the alignment afterward, just to keep the rear door opening smooth. Honestly, if the install looks complicated, call someone who knows

what they’re doing—otherwise, you risk door sag or electrical headaches down the road.Want to make things look even better? Owners usually don’t stop at swapping carriers. Some add carbon fiber covers or color-matched options. Others go for integrated LED lighting, rock sliders that match the bumpers, or custom powder coating and blackout finishes. All those details help the G-Wagon look more unique and really tie it together.

Off-Road Performance Benefits

W463 Spare Wheel Carrier Upgrading to a tough type really boosts your G-Wagon’s trail capability. Heavy-duty carriers shrug off hits from rocks and rough terrain, so you don’t have to worry as much out on the trails. Plus, when you use one that’s built for bigger tires, you don’t lose ground clearance or those all-important departure angles. Ask anyone who’s serious about overlanding—a good spare wheel carrier is pretty much a must-have in their setup. On-Road and Daily Driving Considerations It’s not just for off–road fans, either. If you mostly drive on pavement, swapping out the spare wheel carrier still brings some perks. If you want more out of your setup, systems with retractable or quick-release features make life easier when you need to swap or stow your spare.

G wagon Cost Analysis Basic replacement: $400–$1,000 Quality flip mounts: $800–$1,800 Heavy-duty Eurowise/LeTech systems: $1,500–$3,000+ Premium carbon fiber: $2,500–$5,000+ Professional installation: $300–$1,000 It’s an investment, but honestly, these kinds of upgrades usually hold their value—or even boost it—when you sell to another enthusiast.

Maintenance and Long-Term Care

W463 spare wheel carrier Take a few minutes every so often to check the mounting bolts—make sure they’re snug. Spray on some rust protection where needed, and don’t forget to look over the gas strut to see if it’s holding up. Clean around the carrier and the tire to keep dirt and debris from piling up. If you’ve got carbon fiber or painted parts, grab the right protectant to keep them looking sharp. Take care of these details, and your W463 Spare Wheel Carrier will stay solid and look good for a long time. Common Issues and Troubleshooting

If your G wagon door starts to sag, stronger struts or tightening things down with the right torque usually solves it. For rattling noises, check the spacers and make sure all hardware’s tight. Clearance issues? Adjustable kits or longer spacers do the trick. And if you spot rust starting near the hinges, treat it right away before it gets worse.

Owner Experiences and Community Insights G-Class owners love to show off their upgrades, and stories about the W463 Spare Wheel Carrier pop up all the time. People rave about how flip mounts really change the look, while heavy-duty carriers hold up great on tough trails. Whether you’re browsing forums or chatting in social groups, it’s clear—going with trusted brands like 911 Motorsports, Eurowise, or LeTech pays off. Quality parts make all the difference.

Future Trends in Spare Wheel Carriers

W463 spare wheel carrier The G-Class just keeps getting smarter and lighter, with new features popping up and designs that make swapping parts a breeze. People who love customizing their rides—or need something tough for real off-road adventures—still want durable, versatile gear.

Here’s the deal: The W463 Spare Wheel Carrier isn’t just a random add-on. It’s part of what makes a G-Class stand out—tough, practical, and legendary. Whether you stick with the original setup or go for something flashier like a heavy-duty flip mount, a carbon fiber option, or an adjustable carrier, the right choice bumps up your SUV’s safety, utility, and style.

Upgrading the W463 Spare Wheel Carrier just makes sense for any G-Wagon driver. It pays off, whether you’re running errands in town or chasing trails off the map. Just do your homework, double-check that what you pick actually fits your model year, and don’t hesitate to ask a pro for help. You’ll end up with a G-Class that not only looks and performs better, but also gives you confidence wherever you go.

With the right carrier, your G-Class stays ready for whatever comes—pavement, dirt, or anything in between.
